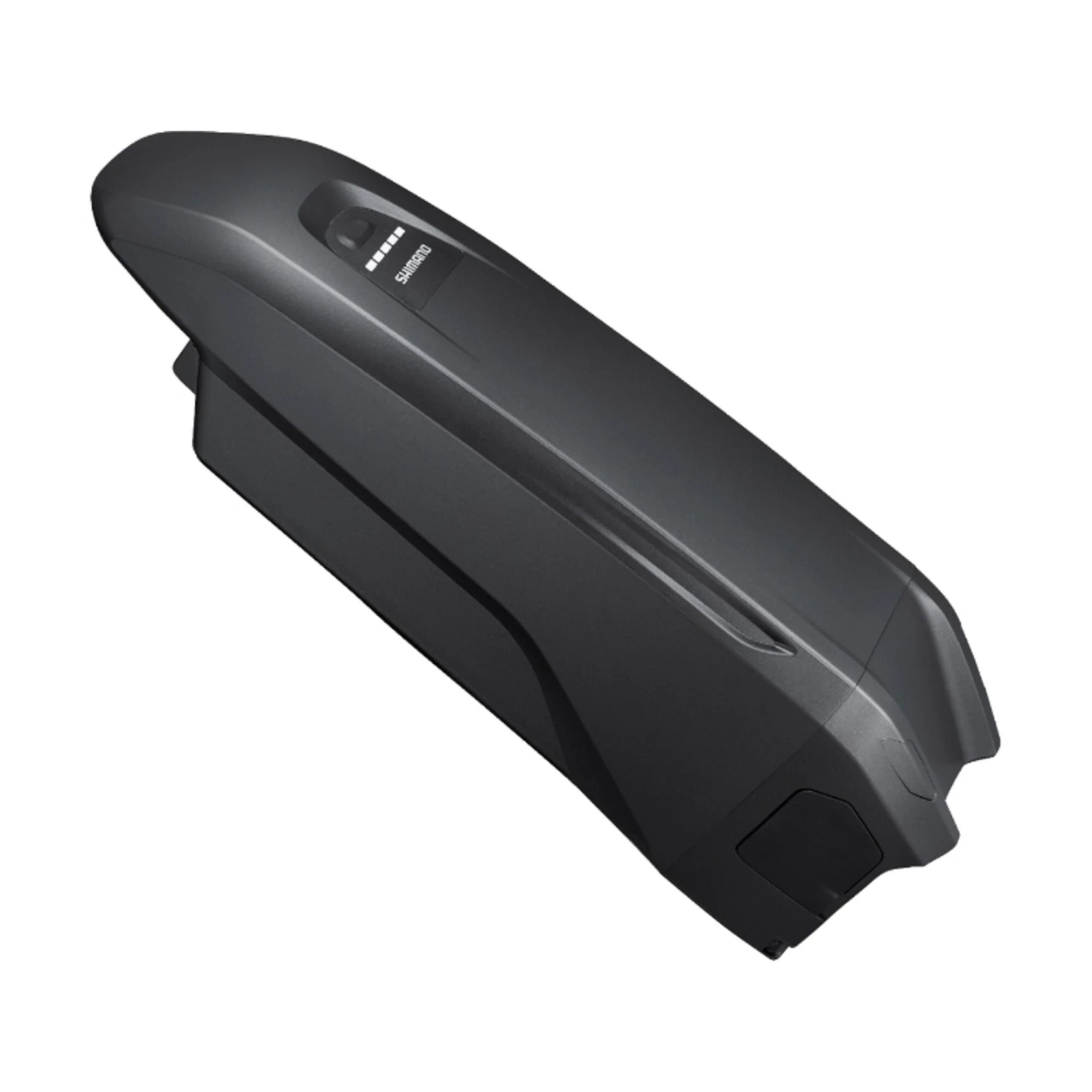

36 V 11.6 Ah Battery For The Shimano Steps E7000 Electric Bike BT

Down tube-mounted battery for the Shimano Steps E7000 e-bike (418 Wh)Capacity: 418 Wh (36 V, 11.6 Ah)

Shimano information

Special mountain bike design
> Compact profile
> Resistant to impacts and vibrations
> Watertight

Capacity: 418 Wh (36 V, 11.6 Ah)

Durable battery
> Consistent recharge
> Compatible with the BM-E8016 or BM-E8010
> Remains compatible with the current EC-E6000 and normal frame bracket

Battery lifespan: *1000 cycles *After 1000 complete charge cycles, it still has more than 300 Wh = 60% (of the initial capacity)

Technical features

MODEL NO: BT-E8014
SERIES: ABS AU300 Series
Weight: 2.55 kg
Battery type: Lithium-ion
Position: Frame
Rated voltage (V): 36
Rated capacity (Ah): * 11.6
Rated capacity (Wh): * 418
Battery lifespan (times) 1000 (more than 60%)
Charge time (hours) | SOC = 100% 3.0 hours
Charge time (hours) | SOC = 80% 2.0 hours

Technical features 2

Charge level display ✔
Error signal ✔
Charging port ✔
System on/off switch ✔
Compatible battery mount BM-E8016
Compatible charger EC-E6002 EC-E8004

MAINTENANCE TIPS

If you aren’t using the battery, charge it at least every 3 months.
The battery range is lower in temperatures below 7 degrees. The battery range can vary depending on the assistance mode, the tyre pressure and how the bike is being ridden.

RECYCLING

Remember to bring your old battery and charger into a store. We are a recycling collection point and will make sure they are recycled correctly.

DIAGNOSTICS

Unsure about your battery’s capacity or want to know what state it’s in? Our teams can run a diagnostic test for you. Simply visit your nearest Decathlon workshop. (Important: allow several working days for this diagnostic test)

Need help?

The technicians at your Decathlon store’s workshop will be happy to help you replace the parts on your bike. Please don’t hesitate to ask them for help!

Charger

Compatible charger EC-E6002 EC-E8004
